Heat tightening properly matched
Elastic fasteners never separate
FASTENER
Key words:

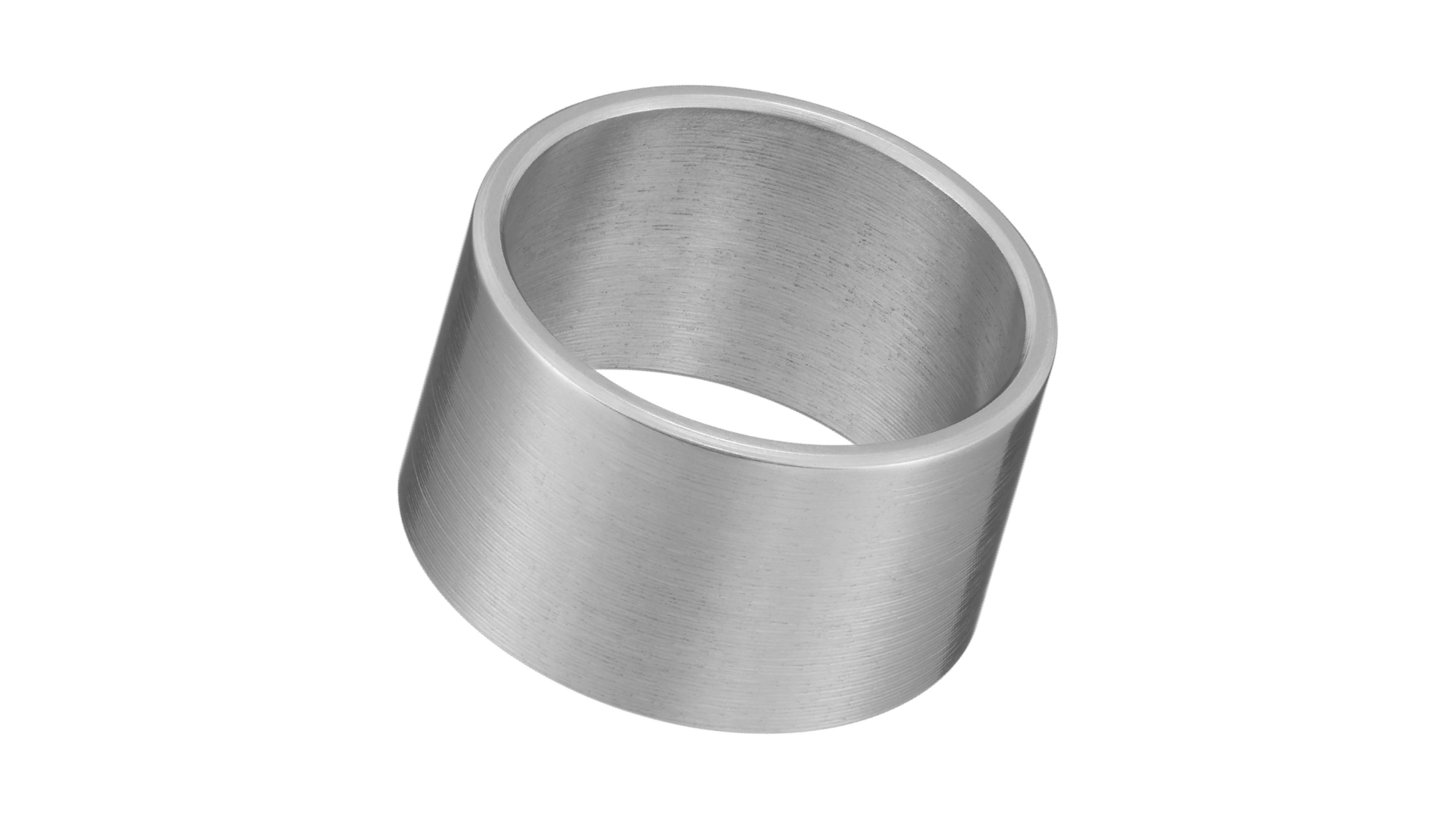

TINI FASTENER
SENSOR ASSEMBLY
Used for pre-tightening connection of sensor components.
Technical parameters
Technologies
1.Shrinkage from temperature > 45C without loading
2.Finish shrinkage from temperature < 100C without loading
3.Assembly temperature from 165C to 200C
4.Working temperature range from -55C to 200C
5.ε0 ≥ 5%
6.σR ≥ 300Mpa
7.Customized is available

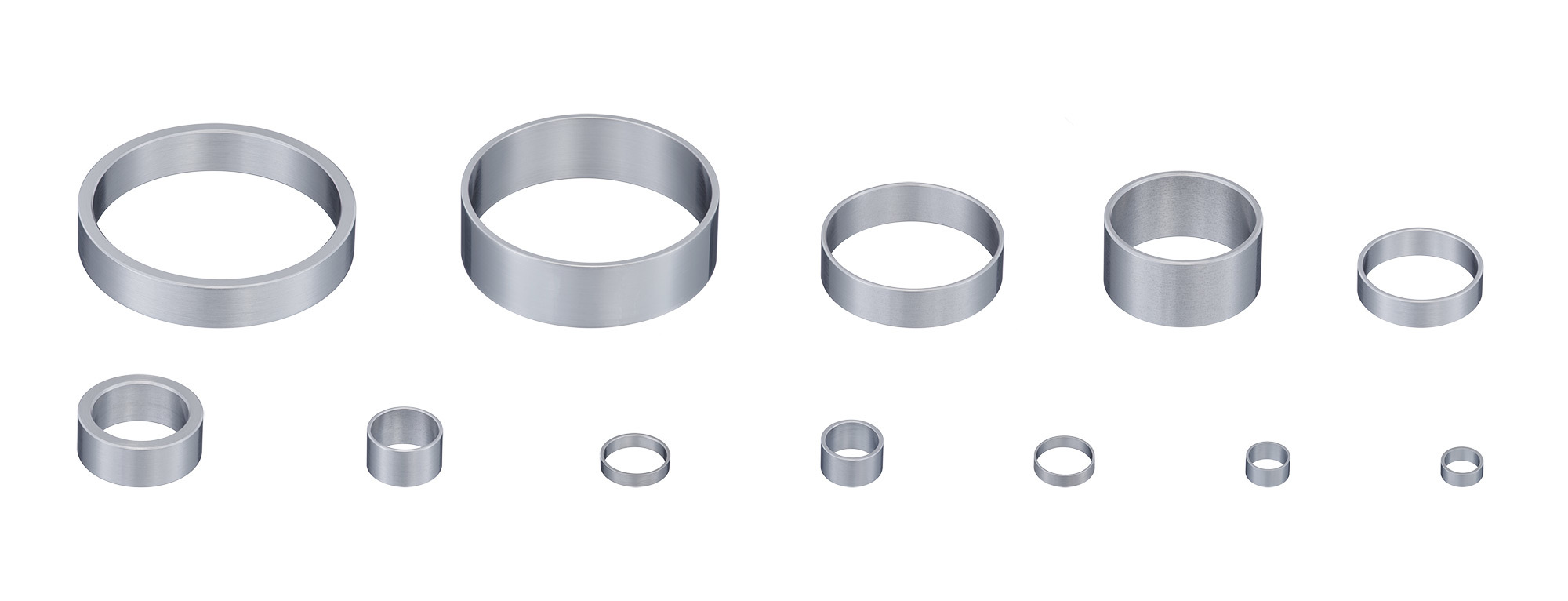

Preload ring specifications model size table(mm)
PART NO. | D1 | THICKNESS | HEIGHT | D2 |
AHM0240-0016-0100 | 2.40 | 0.16±0.02 | 1.00±0.05 | 2.30 |
AHM0480-0050-0220 | 4.80 | 0.50±0.03 | 2.20±0.10 | 4.61 |
AHM0520-0050-0300 | 5.20 | 0.50±0.03 | 3.00±0.10 | 4.99 |
AHM0730-0060-0220 | 7.30 | 0.60±0.03 | 2.20±0.10 | 7.01 |
AHM0800-0032-0204 | 8.00 | 0.32±0.02 | 2.04±0.10 | 7.68 |
AHM0800-0060-0470 | 8.00 | 0.60±0.03 | 4.70±0.12 | 7.68 |
AHM0812-0052-0204 | 8.12 | 0.52±0.03 | 2.04±0.10 | 7.80 |
AHM0960-0050-0600 | 9.60 | 0.50±0.03 | 6.00±0.15 | 9.22 |
AHM1285-0052-0457 | 12.85 | 0.52±0.03 | 4.57±0.12 | 12.32 |
AHM1363-0065-0508 | 13.63 | 0.65±0.03 | 5.08±0.15 | 13.09 |
AHM1559-0065-0407 | 15.59 | 0.65±0.03 | 4.07±0.10 | 14.97 |
AHM1922-0078-0508 | 19.22 | 0.78±0.04 | 5.08±0.15 | 18.45 |
AHM2245-0078-0635 | 22.45 | 0.78±0.04 | 6.35±0.15 | 21.54 |
Previous Page
Next Page
Previous Page
Next Page
Existing products are produced according to enterprise standards
New products can be customized according to user requirements
