Low temperature closure and high temperature opening
High and low reciprocating continuous moisture removal
Memory alloy springs for precision moisture control
Key words:
Memory spring
Memory alloy spring
Memory alloy moisture control spring
Set temperature sensing drive in one, low temperature to close the door heating, high temperature to open the door to drain humidity, dry storage compartment.
Technical parameters
Technical parameter

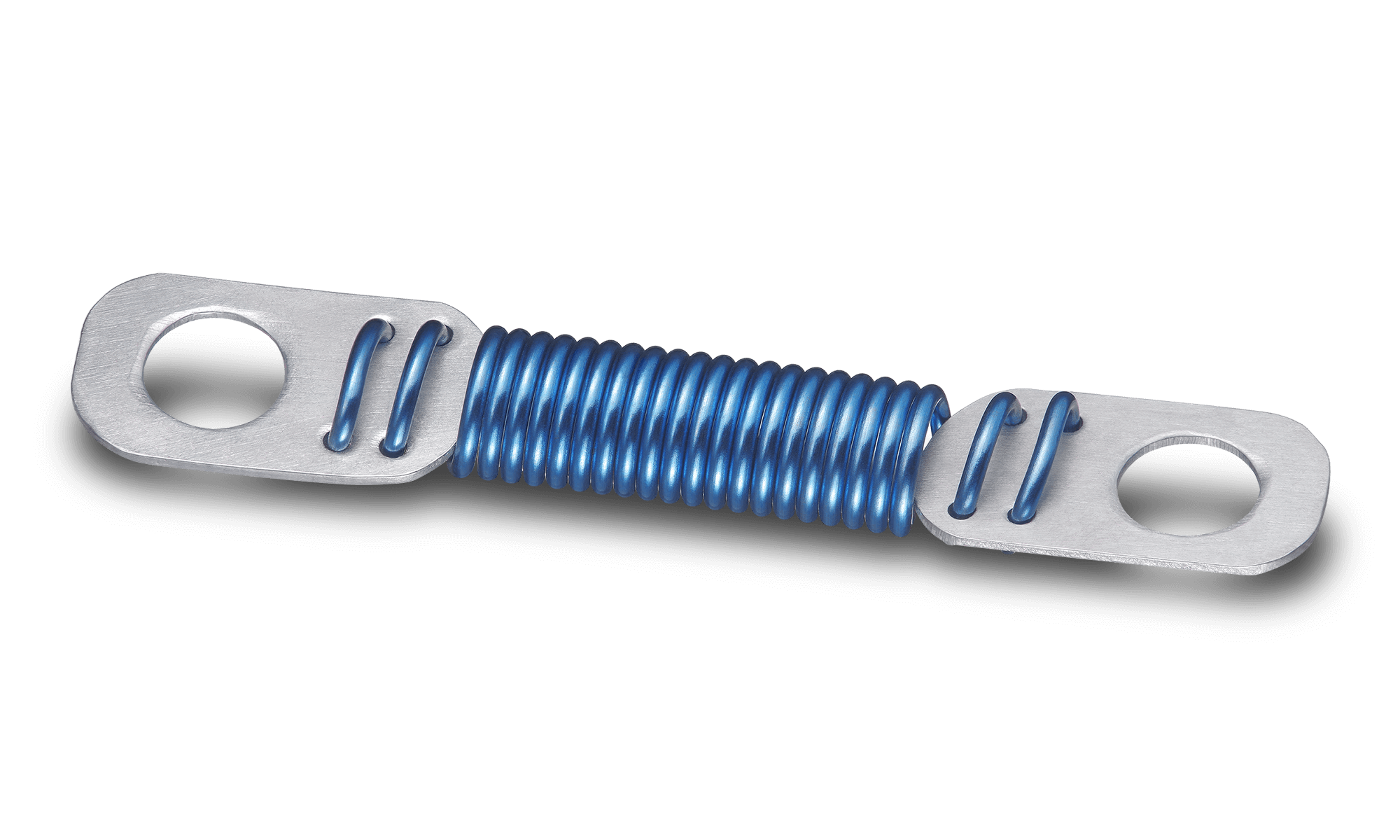

Model number：TNC0625
Alloy material：TiNi Memory alloy
Alloy wire diameter：Ф0.61 ± 0.04mm;
Middle diameter of spring：Ф3.6 ± 0.5mm;
Coil number：25 ± 2;
Spring hook hole spacing is 41mm，The ambient temperature is 90℃，Memory resilience ≥350gf;
Spring hook hole spacing is 41mm，The ambient temperature is 40℃，strain：≤50gf;
Silver-white magnesium aluminum alloy hooks are installed at both ends. The hooks are reliably connected with the spring, and the hooks do not rotate or fall off relative to the spring。
Previous Page
Next Page
Previous Page
Next Page
Existing products are produced according to enterprise standards
New products can be customized according to user requirements
Memory alloy series products
