TINEL LOCK RING
TINEL ALLOY RING, TINI RING, TINI ALLOY RING
Resistance≤ 0.06mΩ
Never Loosen

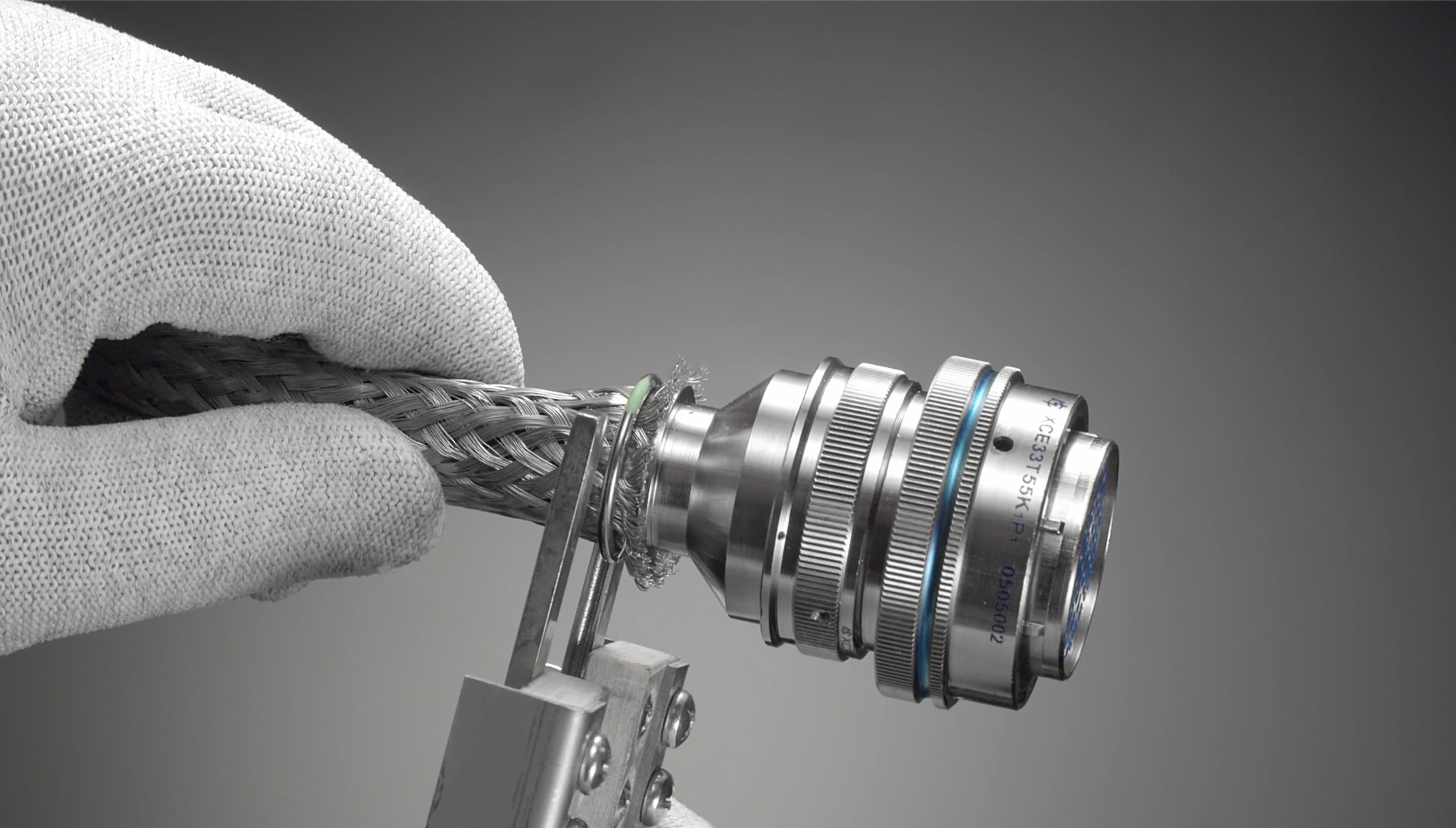

Made of Wide Hysteresis NiTiNb alloys, will shrink at a certain temperature and fasten the braid the adapter, which to decrease the EMI.
US military standard membrane ring series
The outer surface is a sandblasted surface, and the inner surface is coated with an insulating layer. Special electric heater is selected for electric heating, and the heating time is short (≤ 10 seconds), High efficiency, small heat affected zone, uniform heating, full shrinkage, stable effect, Significant power saving. The membrane ring series can be heated by either electric or air gun.
Chemical composition
Main component
TINEL RING SPECTION (mm)
Model number |
| D2 ≦ | Φ | ||||||
TR-04AI | 10.08 | 9.63 | 1.85±0.13 | ||||||
TR-05AI | 11.68 | 11.18 | 1.85±0.13 | ||||||
TR-06AI | 13.28 | 12.68 | 1.85±0.13 | ||||||
TR-07AI | 14.88 | 14.20 | 1.85±0.13 | ||||||
TR-08AI | 16.51 | 15.75 | 1.85±0.13 | ||||||
TR-10AI | 19.86 | 18.90 | 1.85±0.13 | ||||||
TR-12AI | 23.17 | 22.02 | 1.85±0.13 | ||||||
TR-14AI | 26.42 | 25.10 | 1.85±0.13 | ||||||
TR-16AI | 29.74 | 28.22 | 1.85±0.13 | ||||||
TR-18AI | 33.05 | 31.34 | 1.85±0.13 | ||||||
TR-20AI | 36.32 | 34.47 | 1.85±0.13 | ||||||
TR-22AI | 39.19 | 37.16 | 2.13±0.13 | ||||||
TR-24AI | 42.49 | 40.31 | 2.13±0.13 | ||||||
TR-28AI | 49.07 | 46.68 | 2.13±0.13 |
Model number |
| D2 ≦ | Φ | ||||||
TR-04BI | 10.57 | 10.11 | 1.85±0.13 | ||||||
TR-05BI | 12.17 | 11.63 | 1.85±0.13 | ||||||
TR-06BI | 13.92 | 13.28 | 1.85±0.13 | ||||||
TR-07BI | 15.39 | 14.68 | 1.85±0.13 | ||||||
TR-08BI | 17.02 | 16.23 | 1.85±0.13 | ||||||
TR-10BI | 20.37 | 19.38 | 1.85±0.13 | ||||||
TR-12BI | 23.65 | 22.50 | 1.85±0.13 | ||||||
TR-14BI | 26.92 | 25.58 | 1.85±0.13 | ||||||
TR-16BI | 30.25 | 28.68 | 1.85±0.13 | ||||||
TR-18BI | 33.53 | 31.80 | 1.85±0.13 | ||||||
TR-20BI | 36.83 | 34.95 | 1.85±0.13 | ||||||
TR-22BI | 39.65 | 37.62 | 2.13±0.13 | ||||||
TR-24BI | 42.95 | 40.77 | 2.13±0.13 | ||||||
TR-28BI | 49.53 | 47.19 | 2.13±0.13 |
Model number |
| D2 ≦ | Φ | ||||||
TR-10CI | 21.08 | 20.09 | 1.85±0.13 | ||||||
TR-12CI | 24.38 | 23.17 | 1.85±0.13 | ||||||
TR-14CI | 27.66 | 26.24 | 1.85±0.13 | ||||||
TR-16CI | 30.89 | 29.31 | 1.85±0.13 |
Description
1.Without insulation layer, heated by air heating gun
2.Wire diameter 1.85mm+/-0.08mm
3.D1 is for supplied
4.D2 is for after shrinkage
5.D is for entry size
6.D is for output size
7.Customized is available
Military quality, excellence.
The use of TiNiNb wide hysteresis shape memory alloy characteristics, the specific temperature range of heating shrinkage.
